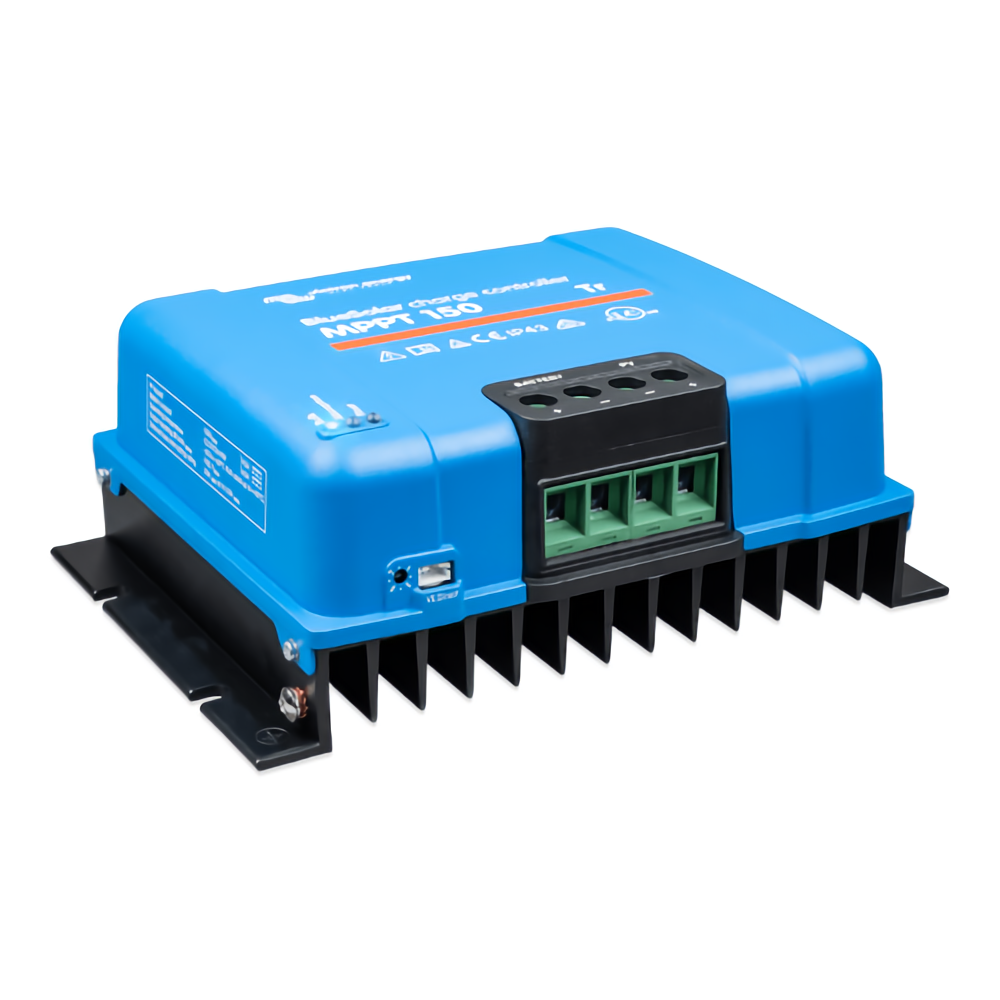

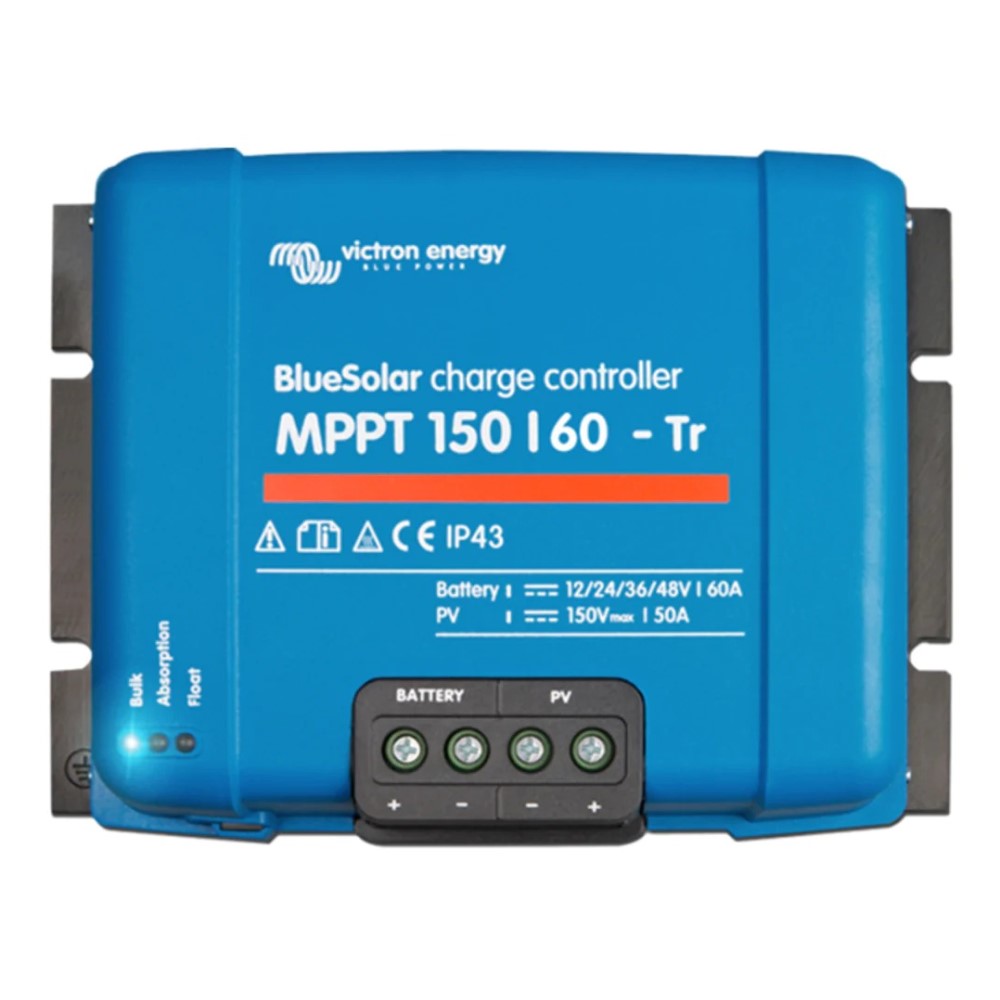

Victron BlueSolar BlueSolar BlueSolar MPPT 150 | 60 | Tr 60A | 4Boats

BlueSolar MPPT 150/60-Tr is a 60A MPPT solar charge controller for 12/24/48V battery systems, designed for fast maximum power point tracking and reliable battery charging.

• Voltage: 12/24/48 V; Rated charge current: 60 A; nominal PV power (12 V): 860 W
• Max PV short-circuit current: 50 A
• Max PV open-circuit voltage: 150 V absolute maximum in coldest conditions; 145 V start-up and operating maximum
• Protection: IP43 (electronic components) and IP22 (connection area)
• Efficiency: 98%; no cooling fan; full output up to 40 °C (104 °F)
• Bluetooth: No - VE.Direct Bluetooth Smart dongle needed for smartphone; see the Venus documents on our website for ColorControl GX and other GX device compatibility
• Dimensions: H185 x W250 x D95 mm (H7.3 x W9.8 x D3.7 in)
• Weight: 3 kg (6.6 lb)
• Warranty: 5 years

Advanced MPPT and partial-shade algorithms maximise energy harvest and support battery health; consult the manual and Venus documentation on our website for programming, GX device setup and installation guidance. See our BlueSolar collection for related products.
