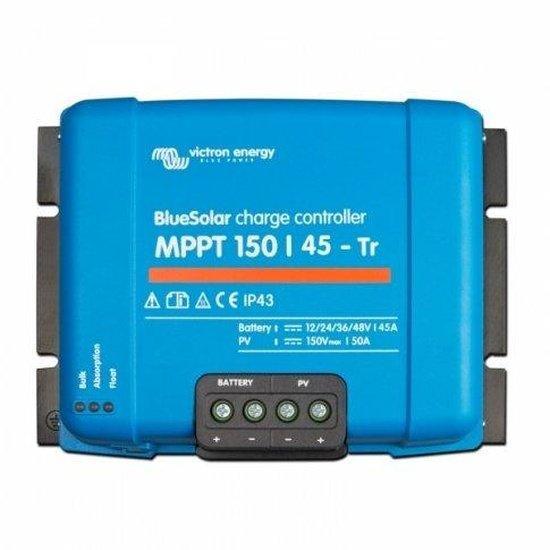

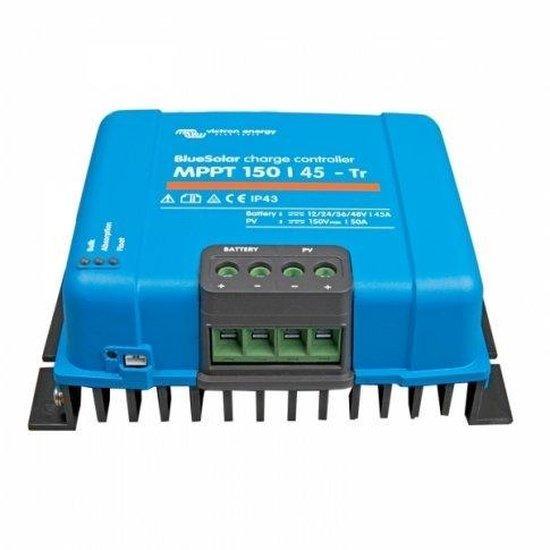

Victron BlueSolar MPPT 150/45 45A Solar Charge Controller | 4Boats

Reliable, high‑speed MPPT charge control for marine, caravan and off‑grid systems; advanced monitoring and configurable charging to protect battery life.

• Ultrafast MPPT Technology: 45 A MPPT designed to deliver the highest possible energy yield and support system monitoring for optimum array performance.
• Inbuilt safety protection: protects against PV short circuit, PV reverse polarity, PV reverse current, battery reverse polarity and battery overheating via internal temperature sensor; self‑diagnostic and LED fault indicators.
• Advanced programming and monitoring: connect the optional MPPT Control panel (sold separately) or VE.Direct accessories for remote configuration and monitoring.
• Live data transmission: real‑time display of solar panel voltage, current and power; data logs: system activity for the past 30 days available to view.
• User‑defined battery charging algorithm: option to disable preset values in favour of personalised charging parameters for various battery chemistries.
• Efficiency and ratings: highest MPPT efficiency (>95%); max solar panel voltage 150 V; max solar panel power 600 W (12 V) / 1300 W (24 V) / 1950 W (36 V) / 2600 W (48 V).
• Electrical & mechanical: cable connection area up to 35 mm² (approx. 2 AWG); self‑consumption <35 mA (12 V) / <20 mA (24 V); dimensions 185 x 250 x 95 mm (7.3 x 9.8 x 3.7 in); mounting dimensions 225 x 81 mm (8.9 x 3.2 in); weight 3 kg (6.6 lb); 4 x mounting holes (8 mm diameter).
• Environmental & communications: communication port RS232 / TTL for VE.Direct accessories; working temperature −30°C to +60°C (−22°F to +140°F); IEC/EN certified; enclosure IP43 (electronic components); Pollution Degree PD3; user manual (VBSM150‑45) and product data available to download.

Compatible with Victron BlueSolar accessories and VE.Direct‑enabled software for Windows PCs/laptops. Installation should be carried out by a qualified technician and batteries must be configured to the correct chemistry and voltage range.
