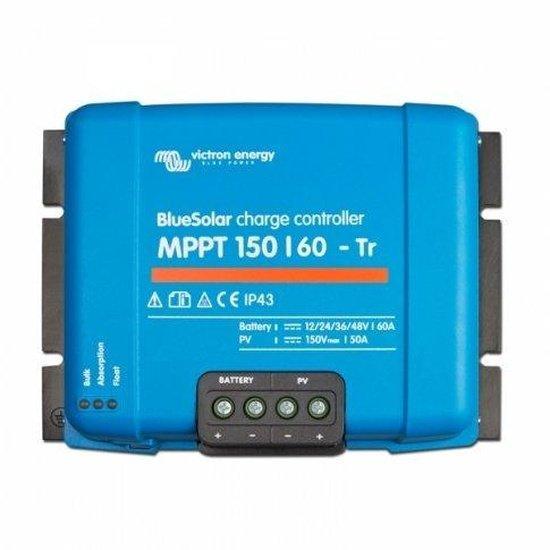

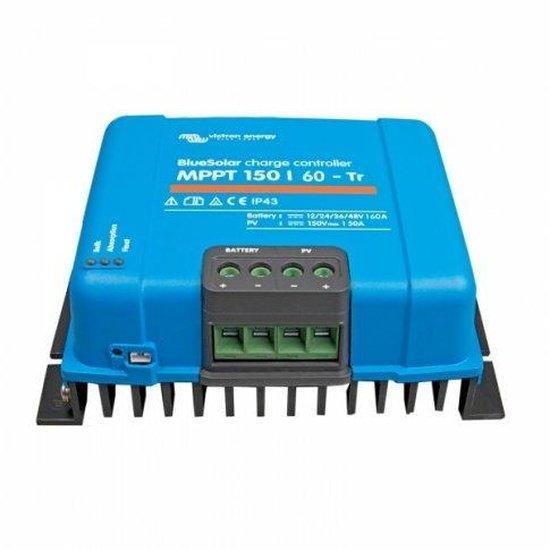

Victron BlueSolar MPPT 150/60 60A solar charge controller | 4Boats

High-performance 60 A MPPT solar charge controller with ultrafast tracking, advanced protection and comprehensive monitoring for 12–48 V systems.

• Ultrafast MPPT technology — maximises energy harvest with >95% efficiency; up to 30% more yield than PWM controllers.
• Max PV input: 150 V. Max PV power: 860W (12 V) / 1720W (24 V) / 2580W (36 V) / 3440W (48 V).
• Rated charge current: 60 A. Terminals accept cables up to 35 mm².
• Inbuilt safety protection — PV short circuit, PV reverse polarity, PV reverse current, battery reverse polarity and battery overheating monitored by internal temperature sensor; self-diagnostic with LED fault indication.
• Advanced programming and monitoring — optional MPPT Control Panel (sold separately) for live display and programming; live data transmission of solar panel and battery voltage, current and power; 30-day data logs.
• User-defined battery charging algorithm — option to disable preset values and apply personalised charging parameters.
• Communication: RS232 / TTL for VE.Direct accessories; compatible with VE.Direct to USB for Windows PCs/laptops for configuration and logging.
• Operational specs — self-consumption <35 mA (12 V) / <20 mA (24 V); working temperature -30°C to +60°C (-22°F to +140°F); IEC/EN certified; Enclosure: IP43 (electronic components), IP22 (connection area); Pollution Degree PD3.
• Mechanical — dimensions 185 x 250 x 95 mm (7.3 x 9.8 x 3.7 in); mounting dimensions 225 x 81 mm (8.9 x 3.2 in); weight 3 kg (6.6 lb); 4 x mounting holes (8 mm diameter).

Downloads available: user manual and product data for the Victron 150‑60 MPPT (VBSM150‑60). MPPT Control Panel and VE.Direct accessories sold separately; ensure compatibility with your battery chemistry before customising charge settings.

High-performance 60 A MPPT solar charge controller with ultrafast tracking, advanced protection and comprehensive monitoring for 12–48 V systems.

• Ultrafast MPPT technology — maximises energy harvest with >95% efficiency; up to 30% more yield than PWM controllers.
• Max PV input: 150 V. Max PV power: 860W (12 V) / 1720W (24 V) / 2580W (36 V) / 3440W (48 V).
• Rated charge current: 60 A. Terminals accept cables up to 35 mm².
• Inbuilt safety protection — PV short circuit, PV reverse polarity, PV reverse current, battery reverse polarity and battery overheating monitored by internal temperature sensor; self-diagnostic with LED fault indication.
• Advanced programming and monitoring — optional MPPT Control Panel (sold separately) for live display and programming; live data transmission of solar panel and battery voltage, current and power; 30-day data logs.
• User-defined battery charging algorithm — option to disable preset values and apply personalised charging parameters.
• Communication: RS232 / TTL for VE.Direct accessories; compatible with VE.Direct to USB for Windows PCs/laptops for configuration and logging.
• Operational specs — self-consumption <35 mA (12 V) / <20 mA (24 V); working temperature -30°C to +60°C (-22°F to +140°F); IEC/EN certified; Enclosure: IP43 (electronic components), IP22 (connection area); Pollution Degree PD3.
• Mechanical — dimensions 185 x 250 x 95 mm (7.3 x 9.8 x 3.7 in); mounting dimensions 225 x 81 mm (8.9 x 3.2 in); weight 3 kg (6.6 lb); 4 x mounting holes (8 mm diameter).

Downloads available: user manual and product data for the Victron 150‑60 MPPT (VBSM150‑60). MPPT Control Panel and VE.Direct accessories sold separately; ensure compatibility with your battery chemistry before customising charge settings.
