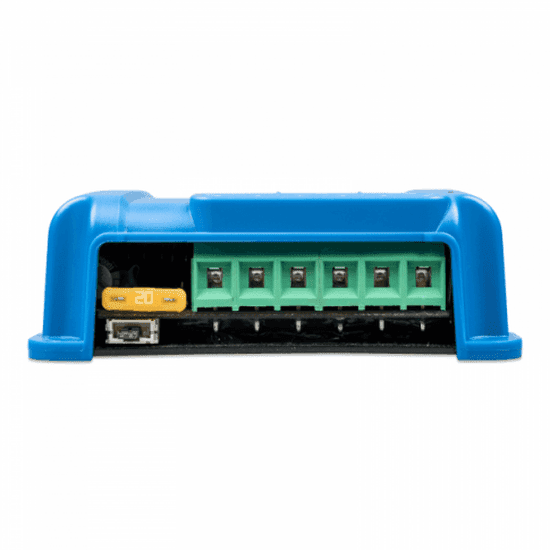

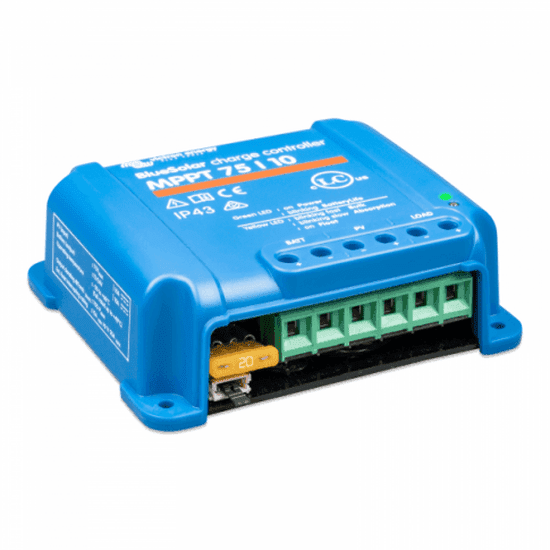

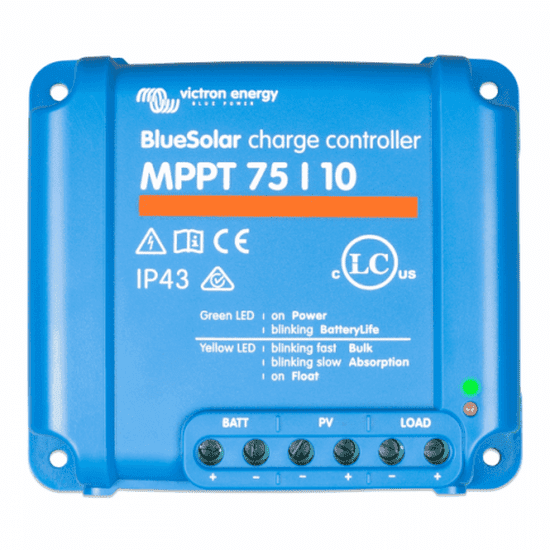

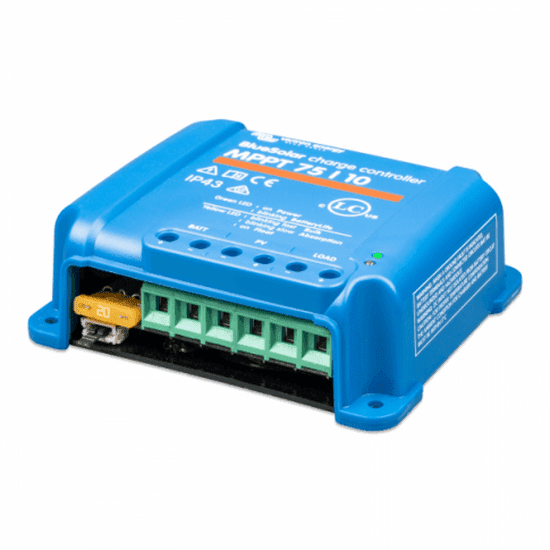

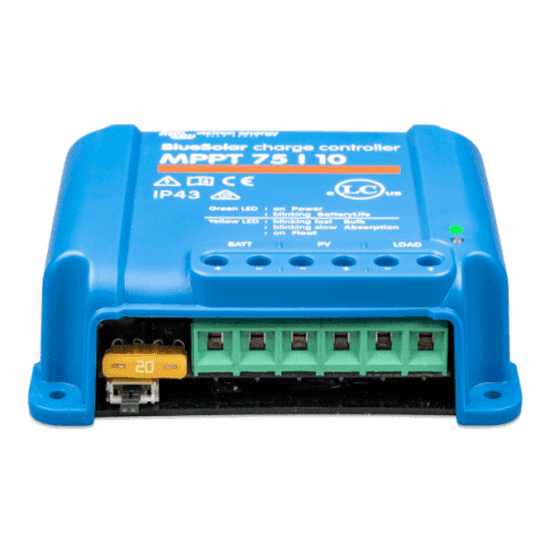

Victron Bluesolar MPPT 75/10 10A Solar Charge Controller | 4Boats

Compact 10 A MPPT solar charge controller for 12 V and 24 V systems, using Victron Bluesolar's ultrafast MPPT to maximise energy harvest and prolong battery life.

• Ultrafast MPPT technology: 10 A controller designed to deliver the highest possible energy yield from the solar array, outperforming PWM and slower MPPT units.
• Inbuilt safety protection: comprehensive protections including reverse polarity, load short-circuit, over-temperature monitoring and self-diagnostics signalled via high‑intensity LEDs.
• Intelligent BatteryLife function: prevents deep discharge and extends battery lifetime by monitoring state of charge and controlling excessive loads.
• Advanced programming & monitoring: connect an optional MPPT control panel (sold separately) and use VE.Direct for remote monitoring and custom settings.
• Live data & logs: real-time transmission of solar panel voltage/current, battery voltage and state‑of‑charge; system activity logs available for the past 30 days.
• User-defined charging: option to disable preset values in favour of personalised charging algorithms and temperature compensation settings.
• Load configuration: choose from pre-set load management programmes or create custom load profiles to suit application needs.
• Key specifications: >95% MPPT efficiency; max solar panel voltage 75 V; max panel power 145 W (12 V) / 290 W (24 V); PV cable up to 6 mm² (≈ 10 AWG); temperature sensor for automatic compensation.
• General & safety: communication port RS232 / TTL for VE.Direct accessories; self-consumption 12 V: 20 mA / 24 V: 10 mA; working temperature -30°C to +60°C (-22°F to 140°F); IEC/EN certified; enclosure IP43 (electronics) / IP22 (connection area); dimensions 100 x 113 x 40 mm (3.94 x 4.45 x 1.57 in); mounting dims 98.8 x 84.1 mm (3.89 x 3.31 in); weight 500 g (0.5 kg / 1.10 lb); 4 x mounting holes (4 mm diameter).

Suitable for a wide range of marine, off‑grid and mobile applications; use with compatible Victron VE.Direct accessories and refer to the user manual and datasheet for wiring and configuration guidance.
