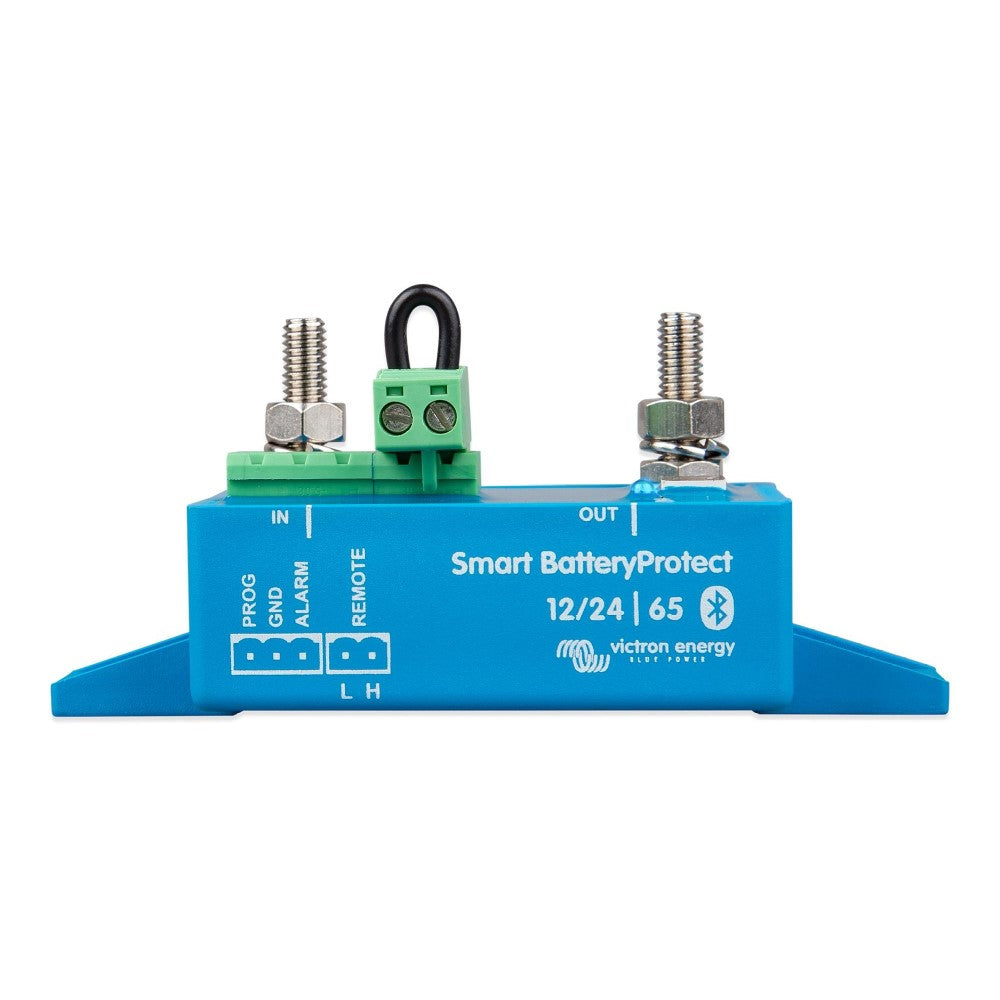

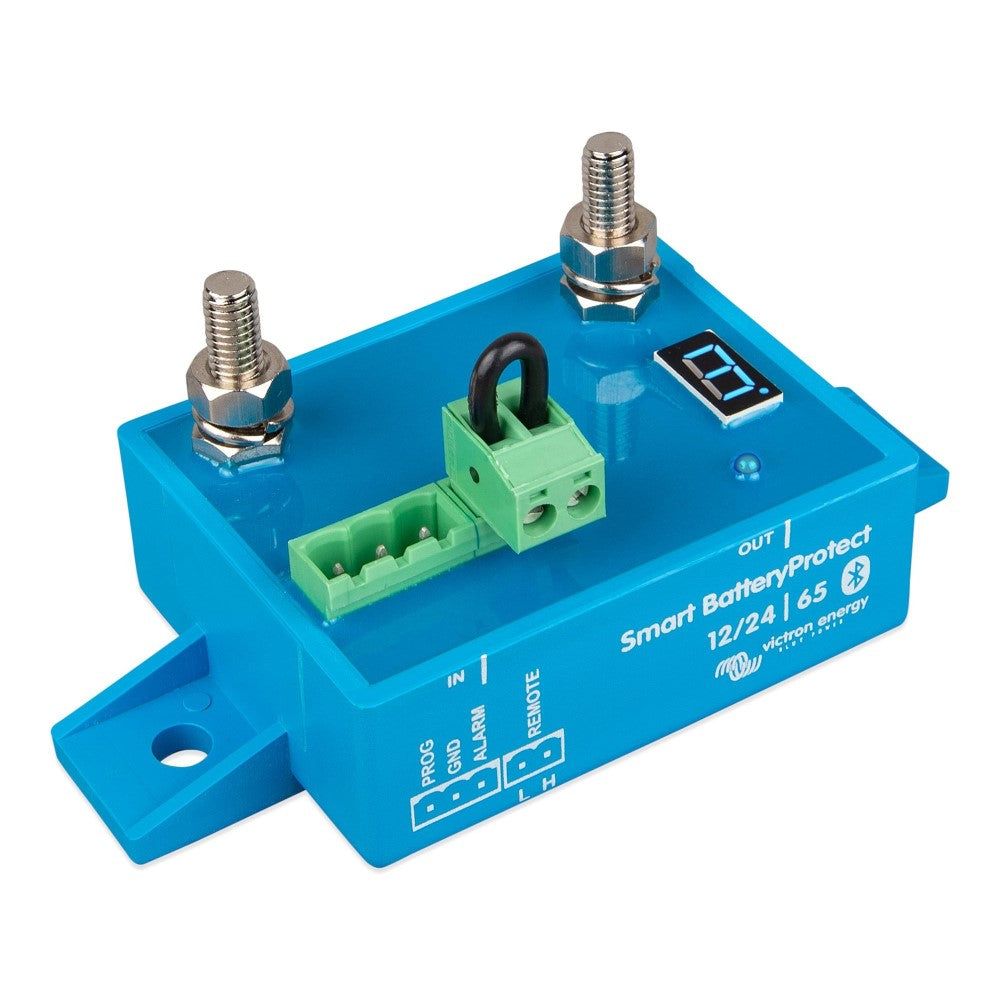

Victron Energy Energy Energy Smart BatteryProtect 12 | 24V 65 | 4Boats

Victron Energy Smart BatteryProtect disconnects non‑essential loads to prevent deep discharge and preserve starting power, with Bluetooth programming and Li‑ion BMS support for precise control.

• Voltage: 12/24V; Peak current (30 s): 250A; Max continuous load: 65A
• Connection: M6; IP rating - electronics IP67 (potted), connections IP00
• Dimensions (including terminals): 40 × 48 × 106 mm (1.57 × 1.89 × 4.17 in); Weight: 0.2 kg (0.44 lb); Warranty: 5 years
• Disconnects battery from non‑essential loads before deep discharge and can be used as a system on/off switch
• 12/24V auto‑ranging (one‑time detect) and Bluetooth programming for custom engage/disengage levels; Bluetooth can be disabled
• Special Li‑ion setting - controllable by the VE.Bus BMS
• Ultra‑low current consumption (critical after low‑voltage shutdown); ignition‑proof MOSFET switches (no sparks)
• Over‑voltage protection (disconnects at approx. 16V / 32.6V for 12/24V), delayed alarm output and delayed load disconnect/reconnect (load disconnects ~90 s after threshold); not designed for reverse currents from charging sources
