Victron Orion Orion Orion 24 | 12 | 40A DC | DC Converter | 4Boats

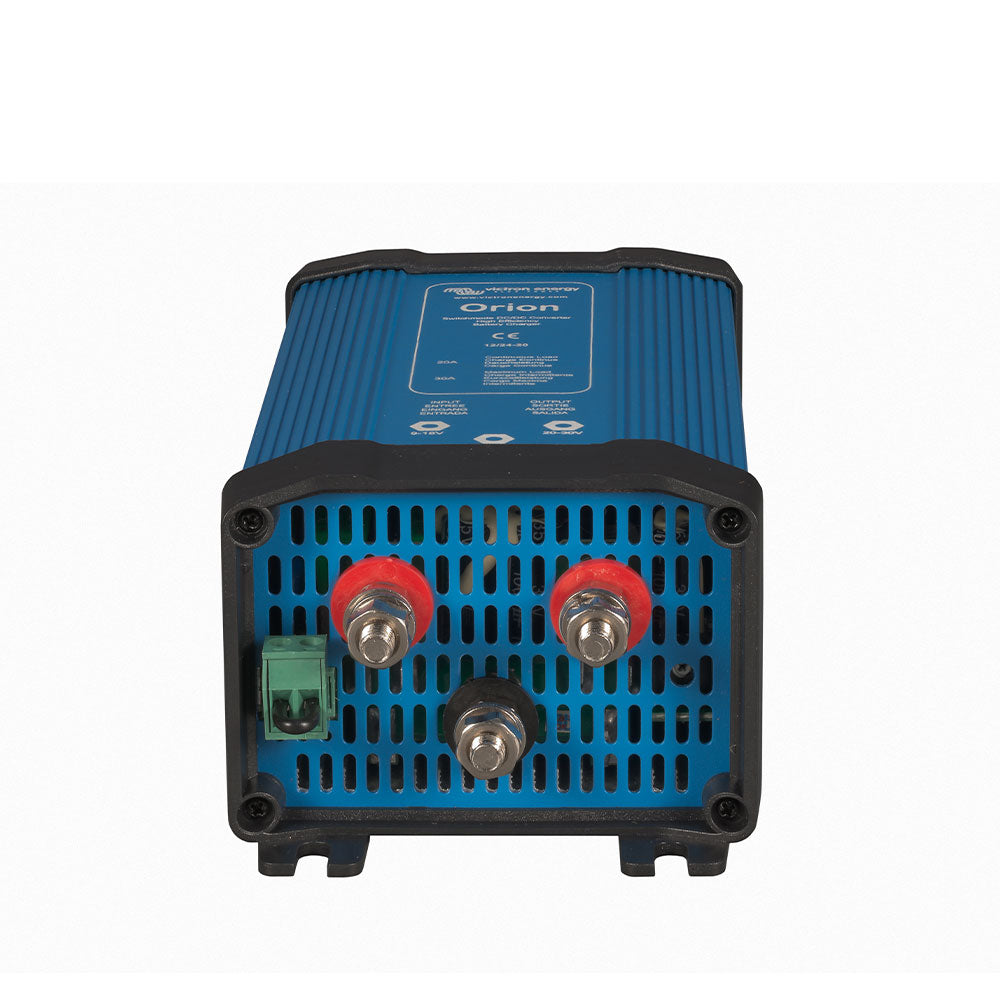

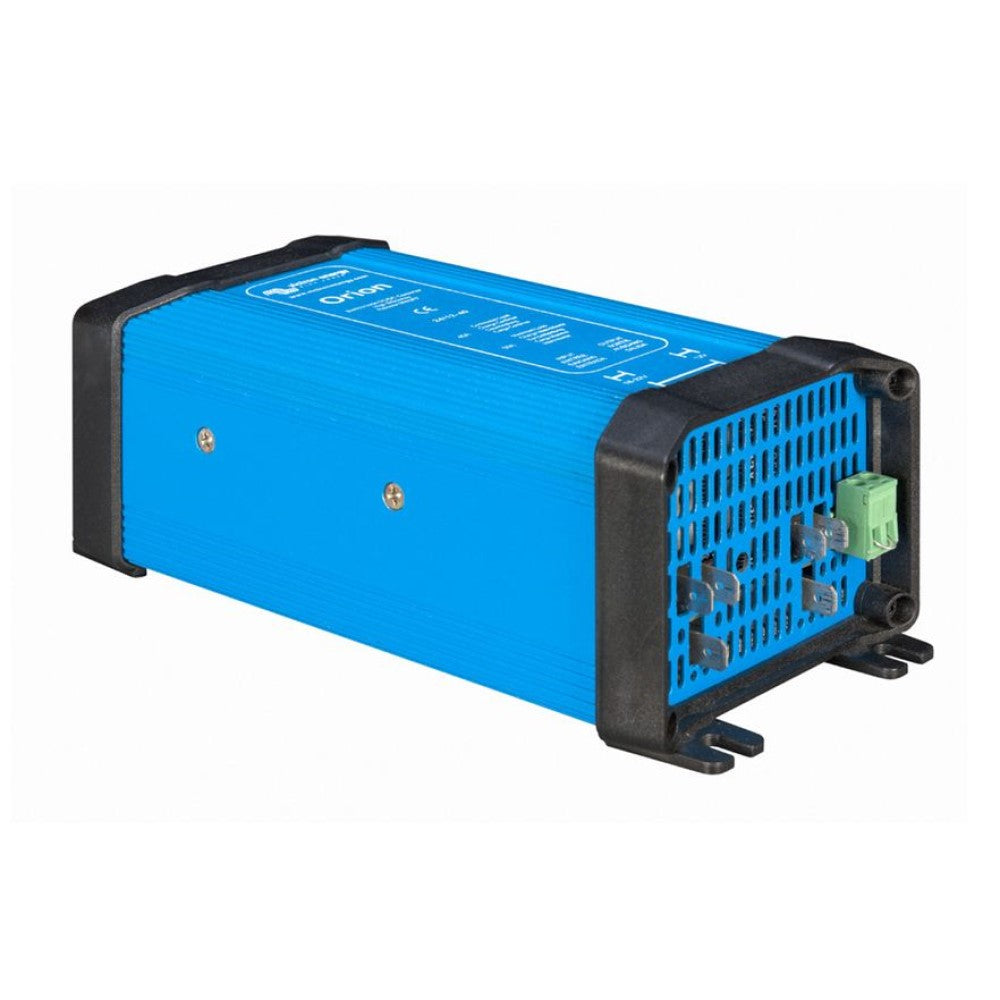

Compact Victron Orion DC-DC converter that steps 24V systems down to 12V (24V to 12V) with a continuous 40A output, ideal for marine and vehicle electrical systems.

• Input voltage range: 18-35 V
• Output voltage: 13.2 V (adjustable)
• Under voltage shutdown: 14 V
• Under voltage restart: 18 V
• Continuous output current: 40 A
• DC connection: Double Faston tabs 6.3 mm
• Remote on-off: Yes - eliminates the need for a high-current switch in input wiring
• Galvanic isolation: No (non-isolated)
• Can be connected in parallel: No
• Protection category: IP20
• Dimensions: H65 × W88 × D185 mm
• Weight: 0.85 kg
• Warranty: 5 years
• Delivery includes eight insulated female Faston crimp terminals 6.3 mm (for Orion 24/12-40)

Adjustable output makes it suitable to charge a 12V starter or accessory battery in a 24V system. For lower-power models, see the Orion-Tr series.
