Description

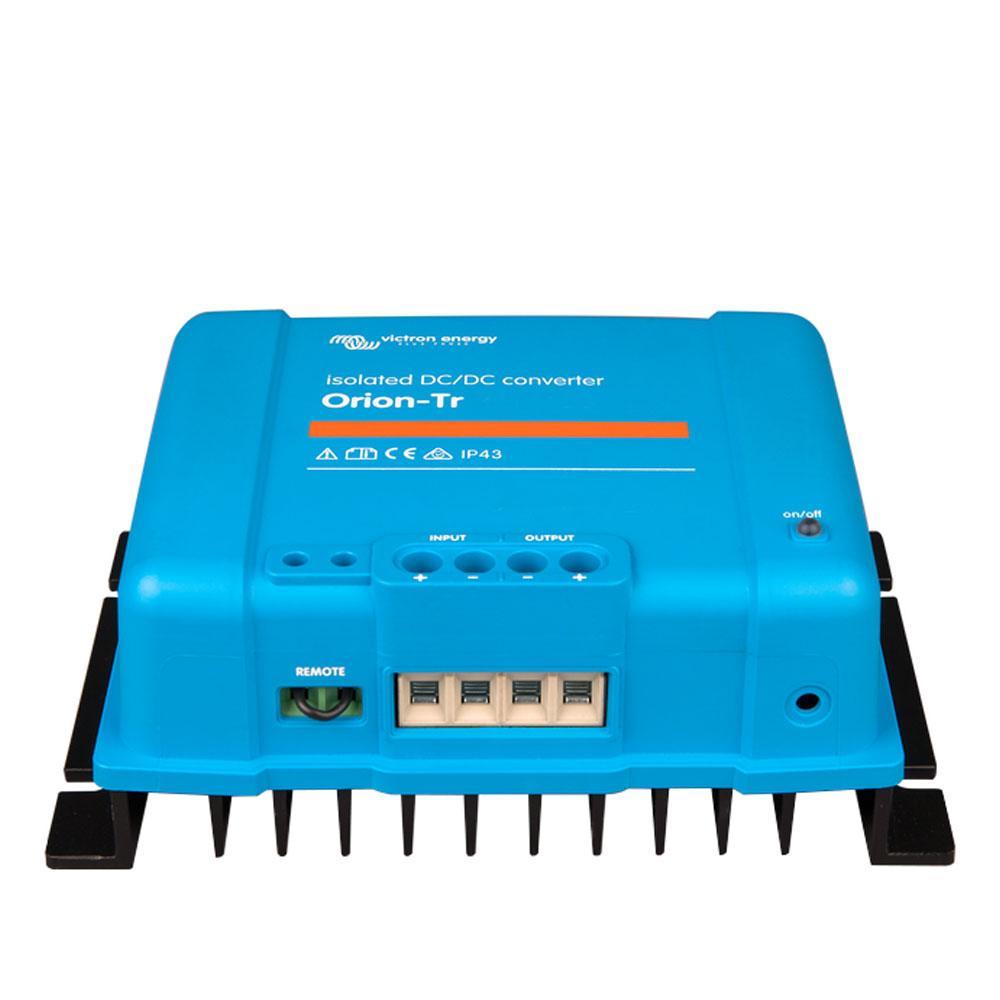

Orion-Tr isolated DC-DC converter, 12V to 12V 18A (220W), designed for reliable battery charging and clean power in marine, vehicle and industrial systems.

  • Orion-Tr isolated DC-DC range; this model is 220W (18A).
  • Remote on-off - eliminates the need for a high-current switch in the input wiring; operable by a low-power switch or engine run/stop (see manual).
  • Adjustable output voltage - can be used as a battery charger; select the appropriate model for your system (for example, some Orion-Tr models are used to charge a 12V auxiliary battery from a higher-voltage system).
  • All models short-circuit proof and can be paralleled to increase output current - multiple units can be connected in parallel.
  • Input fuse provided on 12V and 24V input models only.
  • Galvanic isolation: 200 V DC between input, output and case.
  • Operating temperature: -20 to +55°C (-4 to 131°F); derate 3% per °C above 40°C. Humidity: max. 95% non-condensing.
  • DC connection: screw terminals. Maximum cable cross-section: 13 mm² (AWG 6). Dimensions (HxWxD): 130 × 186 × 70 mm. Weight: 1.3 kg.
  • Standards - Safety: EN 60950; Emission: EN 61000-6-3, EN 55014-1; Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2; Automotive Directive: EN 50498.

Robust, compact and marine-ready - ideal for boats, RVs and commercial vehicles requiring isolated, adjustable DC power. Order or contact us for compatibility advice.
