Victron Orion | Tr Orion | Tr Orion | Tr Isolated DC | DC Con | 4Boats

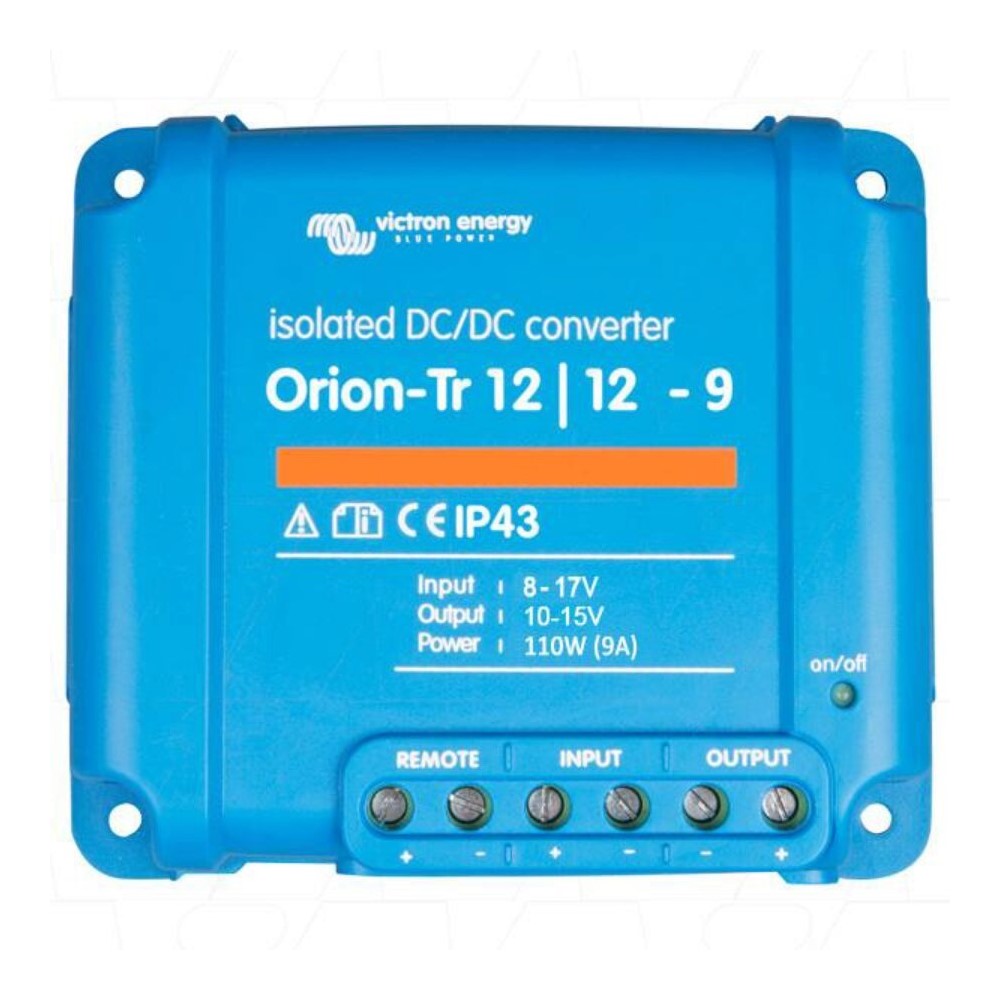

The Orion-Tr isolated DC-DC converter 12/12-9A (110 W) provides a regulated, isolated 12.2 V output with adjustable voltage and remote on/off - ideal for marine and vehicle battery charging and power distribution.

• Input Voltage Range: 8-17 V; Under Voltage Shutdown: 7 V; Under Voltage Restart: 7.5 V
• Nominal Output Voltage: 12.2 V; Output Voltage Adjust Range: 10-15 V; Continuous Output Power at 25 °C: 110 W
• Model: 12/12-9A (nominal output 9 A); Short Circuit Output Current: 32 A
• DC connection: Screw terminals - no special tools needed for installation
• Protection Category: IP43 (when installed with the screw terminals oriented downwards)
• Dimensions: 100 × 113 × 47 mm (3.94 × 4.45 × 1.85 in); Weight: 0.42 kg (0.93 lb)
• Warranty: 5 Years
• Remote on/off: eliminates the need for a high-current switch in the input wiring; operable by a low-power switch or engine run/stop (see manual). Adjustable output voltage can be used to charge a 12 V starter or accessory battery within a 12 V system.
• All models are short-circuit proof and can be paralleled to increase output current (unlimited units)

See the Victron manual for wiring diagrams, configuration and safe installation guidance.
