Victron Phoenix 12/250 230V Inverter with VE.Direct | 4Boats

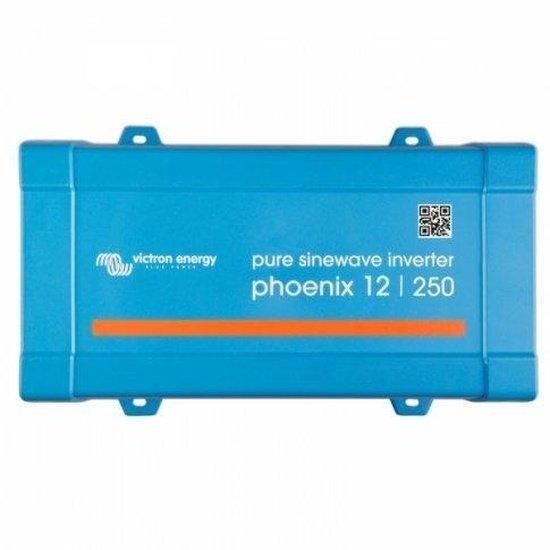

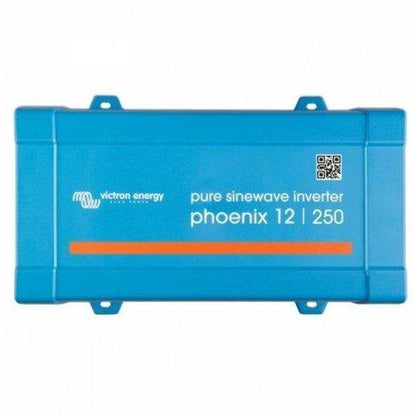

Victron Phoenix 12/250 230 V pure sine inverter with built-in VE.Direct port for system monitoring and configurable protection.

• Continuous output: 250 VA / 200 W at 25 °C; peak (start-up) power 400 W for high inrush loads.
• Input DC voltage range 9.2–17 V; low battery shutdown 9.3 V (programmable via the VictronConnect app).
• Battery compatibility: Sealed lead acid, Gel and AGM batteries.

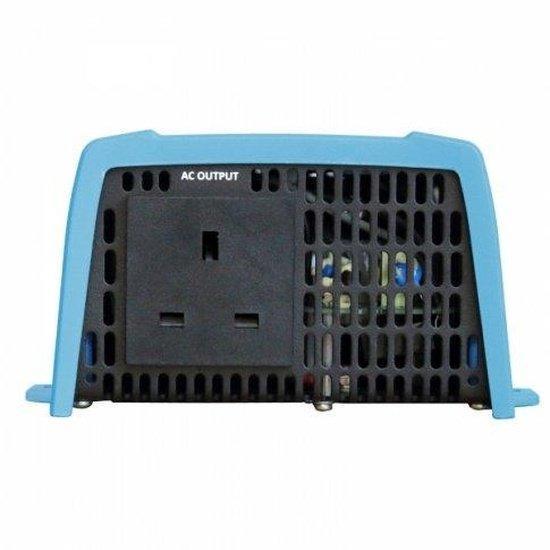

• Output: 230 V AC; frequency 50 Hz / 60 Hz (programmable via VictronConnect); pure sine wave; UK (BS 1363) AC socket.
• Efficiency and consumption: nominal inverter efficiency 87%; zero-load power 4.2 W; default zero-load power in ECO mode 0.8 W (adjustable via the VictronConnect app).
• Cooling and environment: operating temperature −60 °C to +60 °C with fan-assisted cooling; max. humidity (non-condensing) 95%.
• Superior build quality with toroidal transformer for higher efficiency and cooler operation; inbuilt protection against short-circuit, overload, battery overvoltage and overheating; red/green LED status indicators.

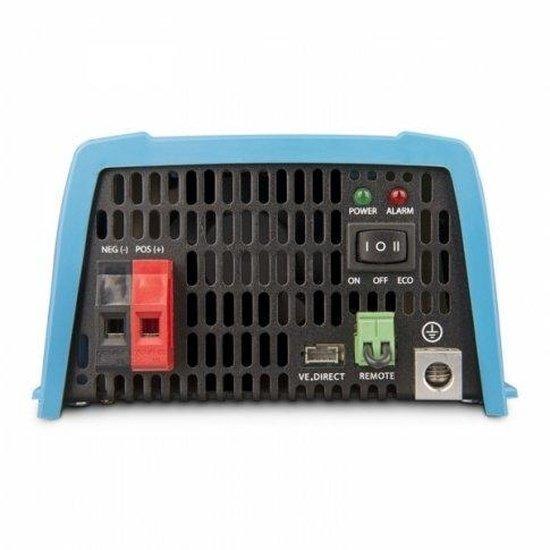

• VE.Direct port for connection to a PC/laptop (VE.Direct to USB cable required) or optional VE.Direct Bluetooth dongle to monitor and programme via the VictronConnect app.
• Features: power-saving ECO standby mode, dynamic cut-off that monitors discharge rate to determine DC disconnect voltage, remote On/Off connection point (switch not included) and compatibility with an optional automatic AC transfer switch to connect another AC source.
• Installation: maximum cable cross-section 10 mm²; minimum battery capacity 30 Ah; follow the user manual for installation, safety and compatibility with other AC sources.
• Dimensions and documents: size 26 x 16.5 x 8.6 cm (10.2 x 6.5 x 3.4 in); weight 2.4 kg (5.3 lb). User manual available to download.

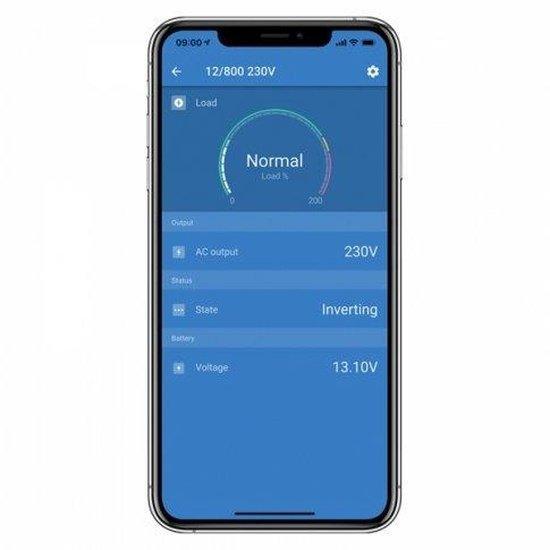

For monitoring and remote programming use the VictronConnect app; VE.Direct to USB cable or VE.Direct Bluetooth dongle sold separately. Follow the user manual for installation, safety and compatibility with other AC sources.
