VICTRON PHOENIX Inverter 12/1200 230V with VE.Direct | 4Boats

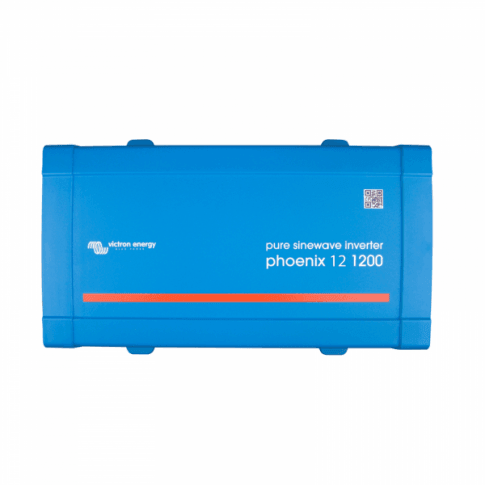

Compact 12 V-to-230 V pure sine inverter with VE.Direct for remote monitoring and programmable operation.

• High peak power: 2200W peak for demanding start-up loads; continuous 1200 VA / 1000W at 25°C, 850W at 40°C.
• Superior build: toroidal transformer for higher efficiency and cooler running; nominal inverter efficiency 91%.
• Inbuilt safety protection: short-circuit, overload, battery overvoltage and overheating protection; low battery shutdown 9.3 V (programmable via app).

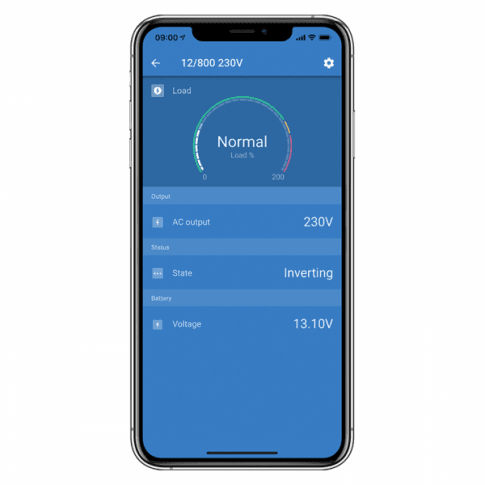

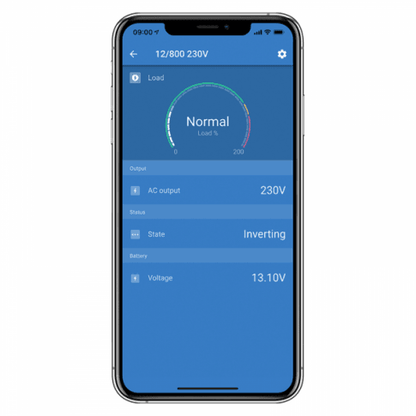

• Advanced monitoring and programming: VE.Direct port enables connection to PC/Laptop or optional VE.Direct Bluetooth dongle (sold separately) using VictronConnect to view voltage, AC output, load, alarms and change settings including output voltage and frequency (50/60Hz), ECO and ignition control — VictronConnect via VE.Direct can also toggle the inverter On/Off.
• Power-saving ECO mode: unit goes to standby below a set load and checks every 2.5 seconds (adjustable); zero-load power 7W (default ECO behaviour adjustable).
• Dynamic cut-off and remote control: automatic DC disconnect based on battery discharge rate (requires VictronConnect); remote On/Off terminal and compatibility with an optional automatic transfer switch to switch to another AC source.
• LED indicators: red/green LEDs show inverter operation status and alarm conditions for quick visual diagnostics.
• Electrical and battery specs: input DC range 9.2–17 V; output 230 V pure sine wave; suitable for sealed lead acid, Gel and AGM batteries; minimum recommended battery capacity 150 Ah; maximum cable cross-section 35 mm² (≈2 AWG).
• Physical and warranty details: UK BS 1363 AC socket; dimensions 117 x 232 x 362 mm (4.6 x 9.1 x 14.3 in); weight 7.4 kg (16.3 lb); operating temperature −40°C to +65°C (−40°F to +149°F) with fan-assisted cooling; humidity max 95% non‑condensing; 5 year warranty; user manual available to download.

Check cable sizing and battery capacity before installation. VE.Direct Bluetooth dongle and automatic transfer switch are sold separately; compatible with the VictronConnect app for full configuration and monitoring.
