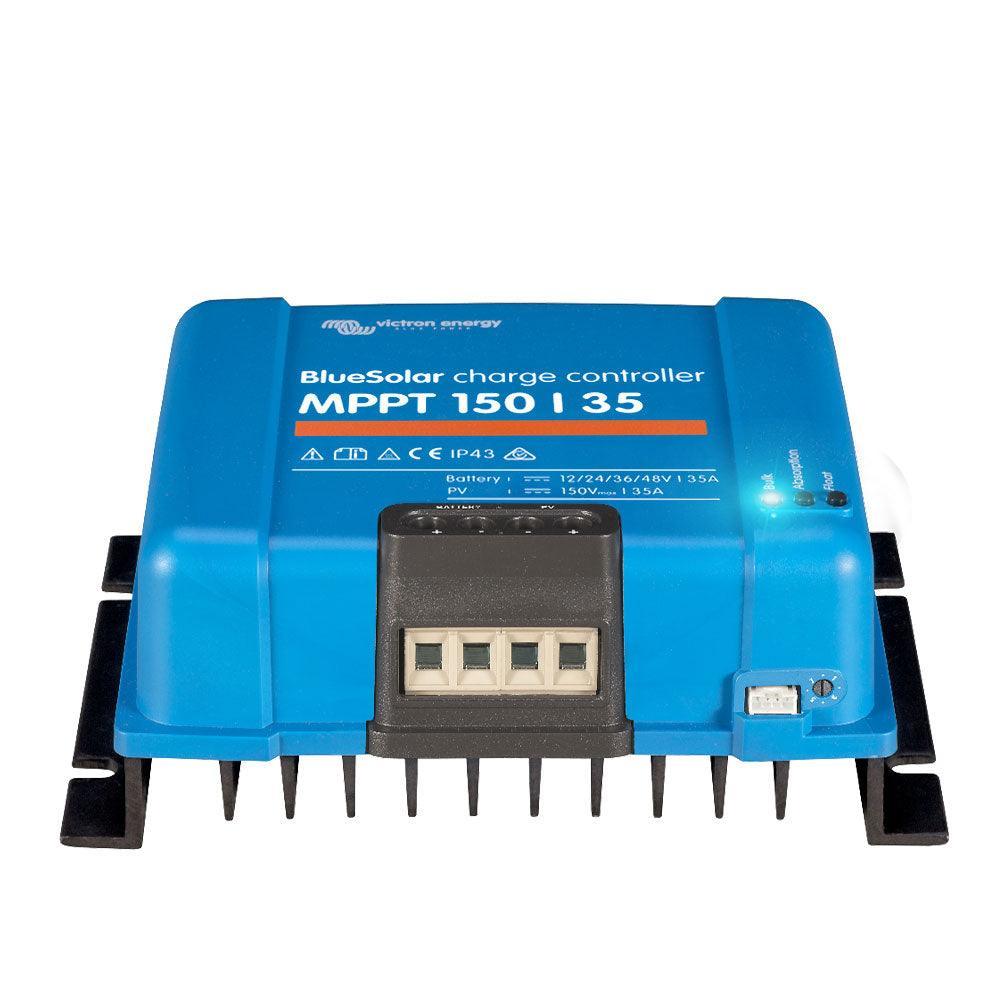

Victron SCC020035000 SCC020035000 BlueSolar MPPT 150 | 35 (SC | 4Boats

BlueSolar MPPT 150/35 is a high-performance solar charge controller that maximises harvest for 12/24/48V battery systems using ultrafast MPPT and advanced shading algorithms. It supports programmable charging algorithms and includes extensive electronic protection for reliable off-grid and onboard power management.

• Voltage: 12/24/48 V
• Rated charge current: 35 A
• Nominal PV power (12 V): 500 W
• Max PV short-circuit current: 40 A
• Max PV open-circuit voltage: 150 V absolute maximum; 145 V start-up and operating maximum
• Protection: IP43 (electronic components), IP22 (connection area)
• Efficiency: 98%
• Bluetooth enabled: No - VE.Direct Bluetooth Smart dongle required for smartphone or other Bluetooth-enabled devices
• Dimensions: H130 × W186 × D70 mm
• Weight: 1.25 kg
• Warranty: 5 years
