Victron SmartShunt 2000A Bluetooth Battery Monitor 12/24/48V | 4Boats

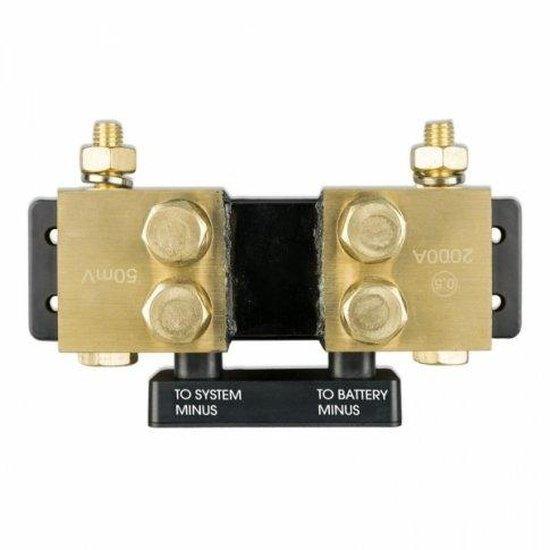

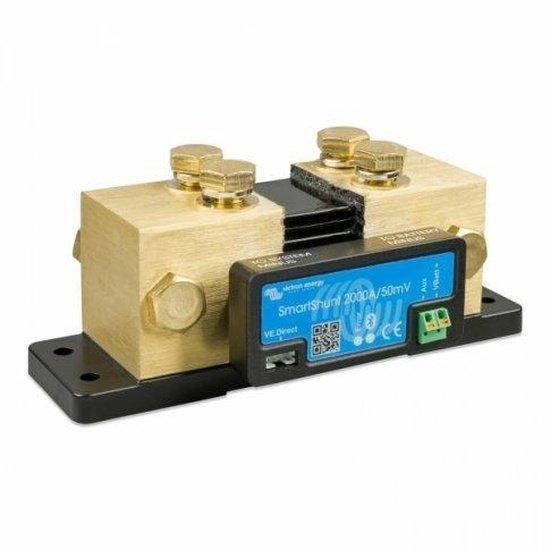

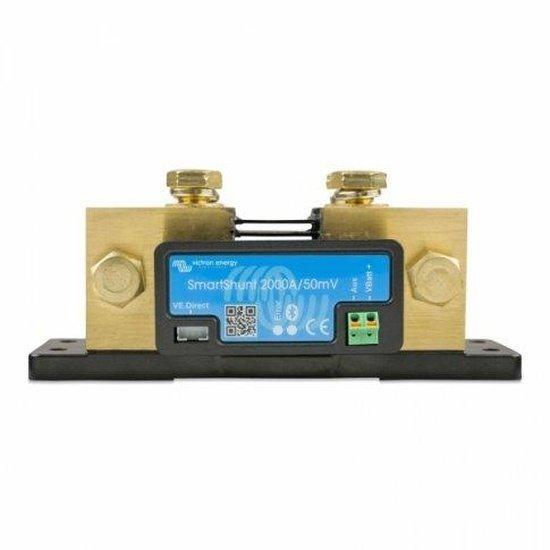

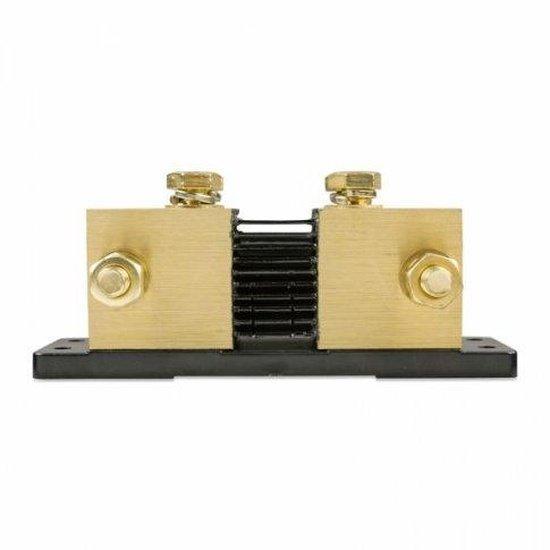

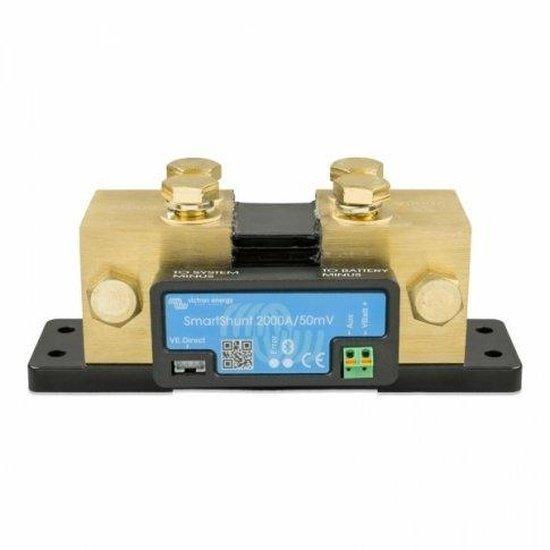

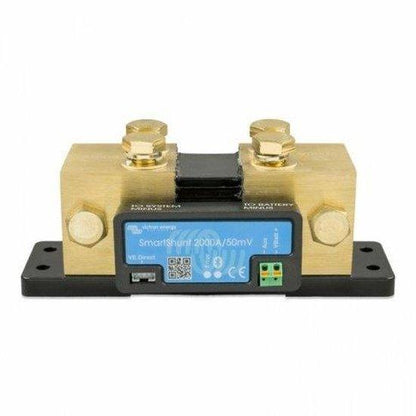

The Victron 2000 A SmartShunt is a high‑precision battery monitor for 12 V/24 V/48 V systems with inbuilt Bluetooth for mobile monitoring and configuration.

• Battery voltage: Displayed for the main battery / battery bank, and also for an optional auxiliary battery connected via the secondary input.
• Battery midpoint voltage monitoring: for battery banks constructed of several individual batteries the SmartShunt measures midpoint voltages and displays bank, top‑section and bottom‑section values and will generate an alarm if balance deviates.
• Battery state of charge: indicated as a percentage value from 0–100%; amp hours consumed shown (eg. 12 A drawn for 3 h = 36 Ah) and time‑to‑go estimated based on current draw.
• Battery charging / discharging current and power: the current (A) and power (W) flowing out of the battery (load consumption) are displayed as negative values, while charging values are shown as positive values.
• Battery temperature: can be connected to an optional Victron battery temperature sensor (product code ASS000100000) to monitor cell temperature and help maintain safe operating limits.
• System specifications: nominal battery voltage 12 V / 24 V / 48 V; supply voltage range 6.5–70 V; input voltage range (auxiliary battery) 6.5–70 V; supply current 1 mA (12 V) / 0.8 mA (24 V); input current range −2000 A to +2000 A.
• Accuracy & environment: voltage measurement accuracy ±0.3%; current measurement accuracy ±0.4%; operating temperature range −40°C to +50°C.
• Physical & standards: dimensions 120 x 68 x 76 mm (4.72 x 2.68 x 2.99 in); weight 2125 g (4.69 lb); Safety: EN 60335‑1; Emission/Immunity: EN‑IEC 61000‑6‑1, EN‑IEC 61000‑6‑2, EN‑IEC 61000‑6‑3; Automotive: EN 50498.
• Included & notes: includes 2x positive supply cables (1.5 m); optional additional temperature sensor available (ASS000100000); product covered by a 5‑year manufacturer warranty. Please note: the shunt must be connected on the negative battery wire, close to the battery; installation video: https://www.youtube.com/watch?v=0HG4GiH9su8. User manual for Victron 2000 A 12 V/24 V/48 V SmartShunt (VS2000S) and datasheet available for download.

Compatible with Bluetooth‑enabled mobile devices via the VictronConnect app for monitoring and configuration; fits hybrid, marine and off‑grid battery systems—check the datasheet for installation guidance and safety information.
