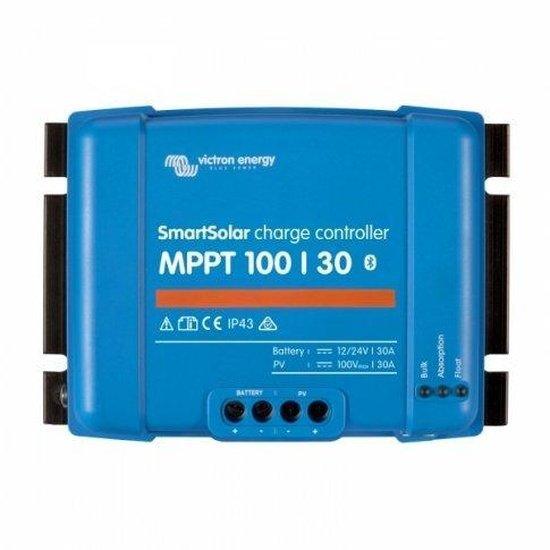

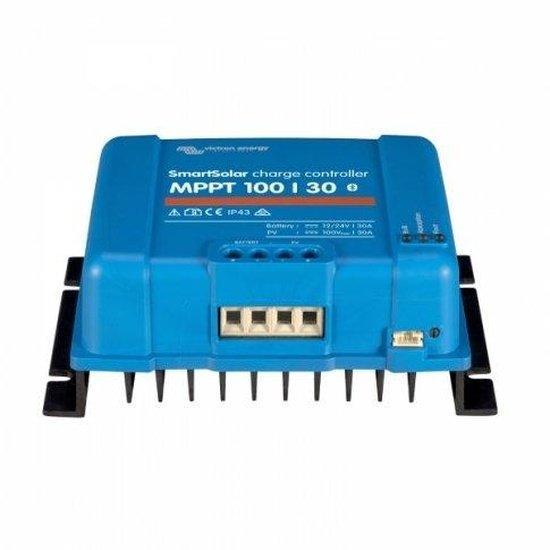

Victron SmartSolar MPPT 100/30 30A Solar Charge Controller | 4Boats

Victron SmartSolar MPPT 100/30 is a 30 A solar charge controller with built‑in Bluetooth and ultrafast MPPT for panels up to 440W (12 V) / 880W (24 V), max 100 V.

• Ultrafast MPPT technology: 30 A controller designed to maximise yield with advanced MPPT tracking and >95% efficiency, delivering markedly higher energy harvest than PWM and slower MPPT units and better performance in low light.
• Maximum input and power: Max solar panel voltage 100 V; max solar panel power 440W (12 V) / 880W (24 V); self‑consumption approx. 10 mA.
• Inbuilt Bluetooth: Built‑in Bluetooth for configuration and monitoring via the VictronConnect app; live data transmission shows real‑time solar panel, battery and load information; data logs store system activity for the past 30 days.
• Inbuilt safety protection: Protection against PV short circuit, PV reverse current, PV reverse polarity and battery reverse polarity; temperature sensor with automatic power derating; self‑diagnostic functions and high‑intensity LED fault indicators.
• Communications and expansion: VE.Direct (TTL UART) communication port for VE.Direct accessories; USB configuration requires a VE.Direct‑to‑USB cable (sold separately); optional Remote LCD/MPPT control panel (sold separately) can be connected to the controller.
• Environmental and certification: Working temperature range -30°C to +60°C (-22°F to +140°F); IEC/EN certified; enclosure IP43; Pollution Degree rating PD3.
• Physical and mounting: Dimensions 186 x 130 x 70 mm (7.3 x 5.1 x 2.8 in); mounting dimensions 175 x 75 mm; weight 1.3 kg (2.9 lb); 4 x mounting holes for ease of installation.
• Other features and applications: Ideal for boats, caravans, motorhomes and small off‑grid systems; advanced fault targeting and comprehensive protection. User manual and support documents available for download.

Compatibility and care: Use with appropriately sized PV arrays and protection fusing; monitor and configure via VictronConnect or compatible VE.Direct accessories. Refer to the supplied user manual for installation, wiring and warranty information.
