Victron SmartSolar MPPT 150/35 35A Solar Charge Controller | 4Boats

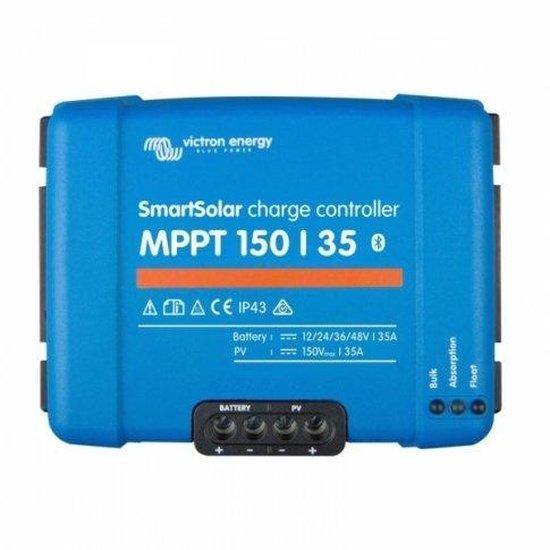

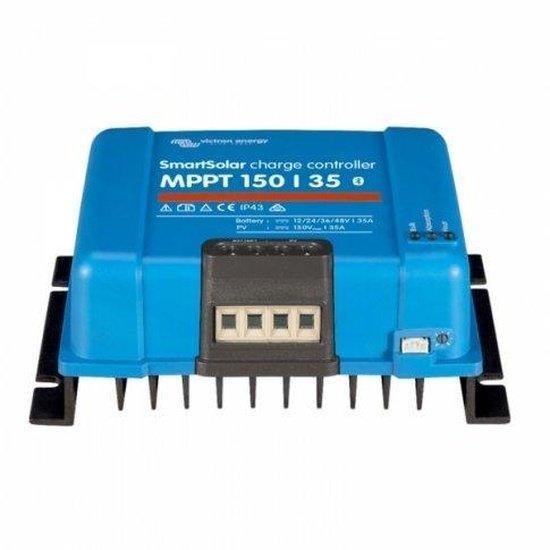

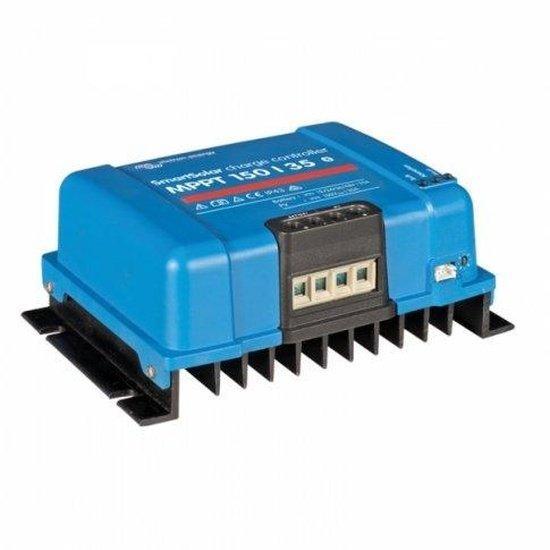

Victron SmartSolar MPPT 150/35 is a 35 A solar charge controller with built‑in Bluetooth and ultrafast MPPT, suited to 12/24/36/48 V battery systems up to 150 V PV.

• Ultrafast MPPT Technology: 35 A MPPT designed to deliver the highest possible energy yield with high‑speed tracking and overall efficiency >95%.
• Max PV voltage & power: Max solar panel voltage 150 V. Max PV power 500W (12 V) / 1000W (24 V) / 1500W (36 V) / 2000W (48 V).
• Inbuilt Bluetooth: Built‑in Bluetooth for use with the VictronConnect app (no dongle required); live data transmission shows PV voltage, current, power and battery state.
• Data logs & custom charging: System activity logs for the past 30 days; user‑defined battery charging algorithm allows disabling presets in favour of personalised charging parameters.
• Inbuilt safety protection: Comprehensive protection for PV short circuit, reverse polarity, overvoltage, overcurrent, reverse current, battery overvoltage and overheating; internal temperature sensor, self‑diagnostics and LED fault indicators.
• Communication & control: RS232 / TTL (VE.Direct) communication port for accessories, direct USB cable support and optional MPPT control panel connection (panel sold separately).
• Electrical & consumption: Self‑consumption 20 mA (12 V) / 15 mA (24 V) / 10 mA (48 V); high conversion efficiency and low standby draw.
• Environment & certification: Operating temperature -30°C to +60°C (-22°F to 140°F); IEC/EN certified; enclosure IP43 (electronic components); Pollution Degree PD3.
• Physical & documentation: Dimensions 130 x 186 x 70 mm (5.12 x 7.32 x 2.76 in); weight 1.25 kg (2.76 lb); 4 x mounting holes (8 mm). User manual available (VSSM150-35 P).

Compatible with 12/24/36/48 V battery systems—confirm system voltage before installation and refer to the user manual for wiring, care and warranty information.
