Victron SmartSolar Pluggable LCD Display for MPPT | 4Boats

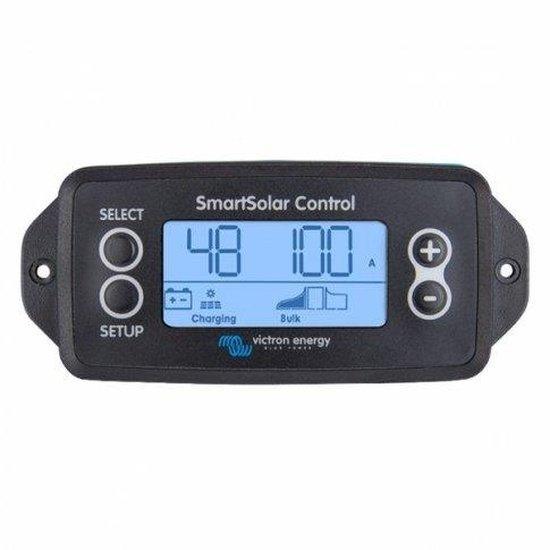

Pluggable LCD display for Victron SmartSolar MPPT solar charge controllers, providing on‑unit monitoring and programming of charging, relay and logging functions.

• Simply remove the rubber seal on the face of your SmartSolar controller and plug in this LCD display to access monitoring and programming functions.
• Live data transmission: real‑time solar panel output, battery voltage and current, load status and current, and charging stage information.
• Relay programming: programme relay contacts to trigger alarms for high/low battery or panel voltages and temperatures, or to start a generator automatically.
• 30‑day data logs: view today's or cumulative 30‑day values — daily energy yield, maximum recorded power and voltage, time spent in each charging stage, maximum battery current, minimum and maximum battery voltages and daily error records; 30‑day totals include cumulative energy yield, maximum panel voltage and recent errors.
• User‑defined battery charging algorithm and temperature compensation settings: disable presets and set personalised charging parameters.
• Load configuration and temperature sensor readings: configure load terminals where present; temperature values available for both the battery and the solar charge controller (internal or external sensor).
• Display options: adjust backlight and text scroll speed for easier viewing.

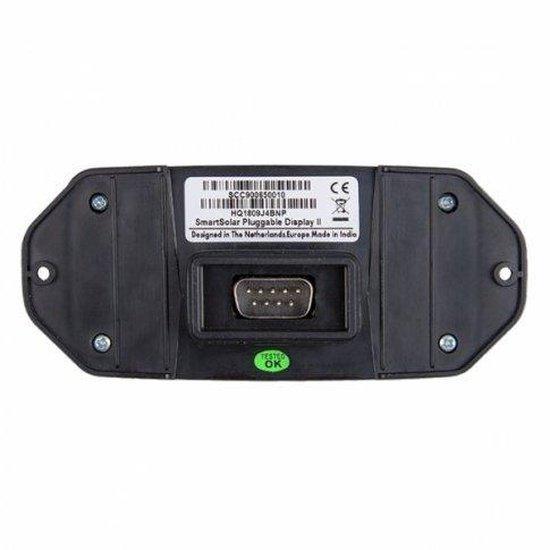

• Compatibility and specifications: compatible with Victron SmartSolar MPPT controllers with a plug‑in display port (eg VSSM150‑45, VSSM150‑60, VSSM150‑85, VSSM150‑100). Fitted dimensions: 97 x 49 x 19 mm (3.82 x 1.93 x 0.75 in). Dimensions including plug (standalone): 97 x 49 x 27 mm (3.82 x 1.93 x 1.Ø 6 in). Weight: 64 g (2.26 oz). Product covered by a 5‑year warranty.

Ensure your SmartSolar controller has the plug‑in display socket before purchase; refer to the controller manual for full compatibility and installation guidance.
