Victron VE VE.Direct MPPT Control Panel with LCD Display | 4Boats

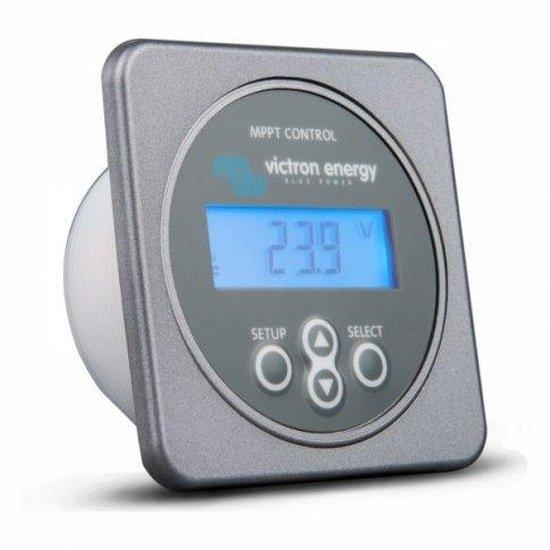

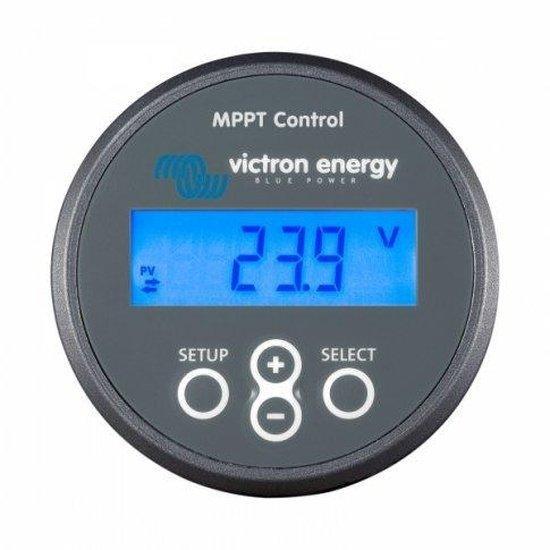

Monitor and programme Victron BlueSolar or SmartSolar MPPT charge controllers via the VE.Direct MPPT control panel with an easy‑read LCD and live system data.

• Compatible Victron products: Designed for use with Victron MPPT charge controllers fitted with a VE.Direct port; e.g. BlueSolar models such as VBSM75-15, VBSM100-30, VBSM100-50, VBSM150-35, VBSM150-45, VBSM150-60 and VBSM150-70, and selected SmartSolar models.
• Advanced programming and monitoring: Connecting this MPPT control panel to your Victron solar charge controller unlocks remote checking and programming of charging parameters and system configuration.
• Live data transmission: Real‑time display of solar panel power, battery voltage, state of charge and charging stage information.
• 30‑day data logs: View system activity as daily values or cumulative 30‑day summaries. Daily data includes energy yield, maximum recorded power and voltage, time spent in each charging stage and daily error records; 30‑day data includes total cumulative energy yield and maximum recorded panel voltage plus min/max battery readings.
• User‑defined battery charging algorithm: Option to disable preset values in favour of personalised charging parameters, including temperature compensation settings.
• Load configuration: Configure load behaviour on BlueSolar or SmartSolar MPPT controllers that provide load terminals (for example VBSM75‑15 and similar models).
• Connection note: As default, VE.Direct connection cable between the MPPT control panel and BlueSolar/SmartSolar controller is not supplied.
• Specifications: Supply voltage range 5 V; current draw (without backlight) < 4 mA; operating temperature range -20°C to +50°C (-4°F to 122°F); diameter of front round face 63 mm (2.48 in); overall dimensions approx. 63 mm diameter x 31 mm depth (2.48 in x 1.22 in); hole required for flush mounting approx. 54 mm diameter (31 mm depth); weight 61 g (2.15 oz); covered by a 5‑year warranty.

Please check controller compatibility and note the VE.Direct lead is sold separately. Download the user manual and additional documents from the product page for full installation and wiring instructions.
