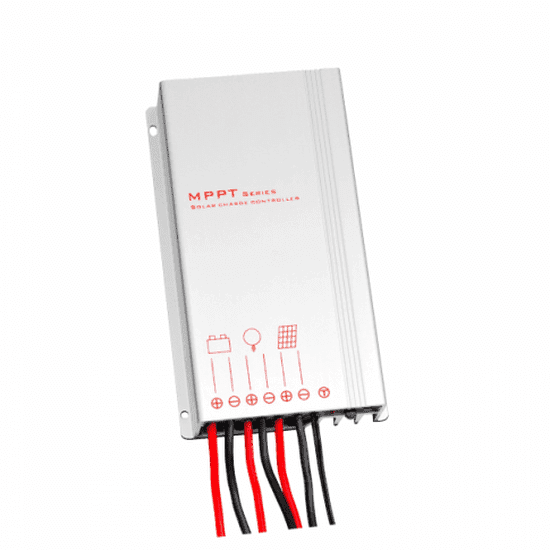

Photonic Universe LUX1524WP waterproof MPPT solar charge controller — compact, fully sealed for caravans, motorhomes, campervans, boats, yachts and other marine applications.

• MPPT charging technology with 15 A output for maximising panel power and efficient battery charging.
• Battery compatibility: sealed/AGM, gel and flooded/wet batteries; prevents reverse current to protect battery at night.
• Default charging program: Gel (adjustable via optional IR remote).
• Max solar input power: 200W (12 V system) / 400W (24 V system); max solar input voltage: 55 V; current rating: 15 A.
• Protection rating: IP67 for all‑weather use; fully sealed for marine and outdoor installations.
• Self‑consumption: 6 mA; ambient conditions: -35°C to +60°C (-31°F to 140°F), 0–100% RH humidity, altitude <4,000 m (13,123 ft).
• Dimensions: 85.8 x 145 x 30 mm (3.38 x 5.71 x 1.18 in); weight: 600 g (1.32 lb); mounting holes for ease of installation.
• Programmable timer with dimmer (5 independently timed stages) and dusk/dawn detection; compatible with optional remote IR programmer for wireless monitoring and adjustment.
• Comprehensive protections: overcharge/discharge cutoff, overload and short‑circuit protection on load terminals, overheating protection and reverse current prevention.

Suitable for small to medium off‑grid solar panels used in marine and leisure vehicles. User manual available for the LUX1524WP Photonic Universe 15 A 12 V/24 V waterproof MPPT solar charge controller.
